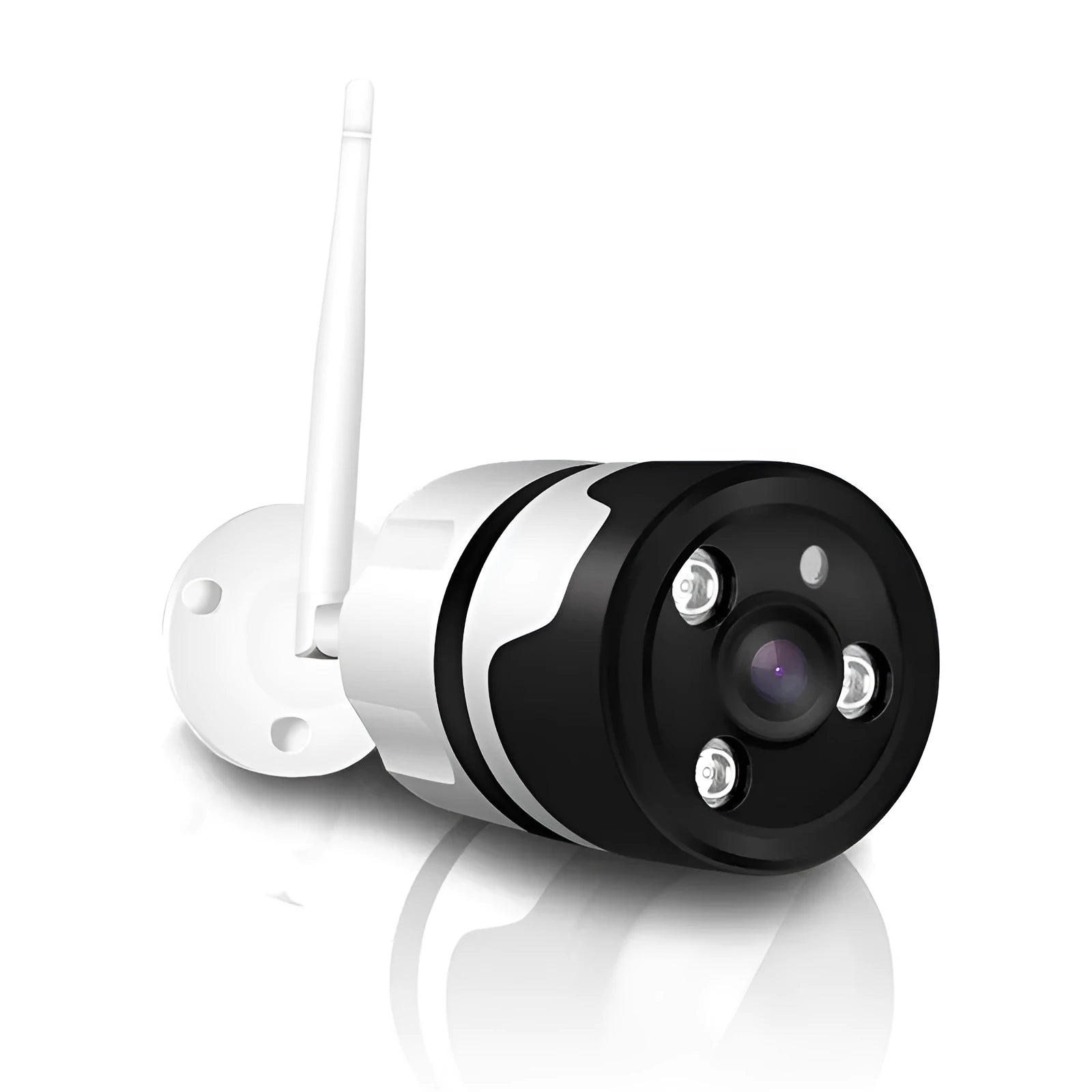

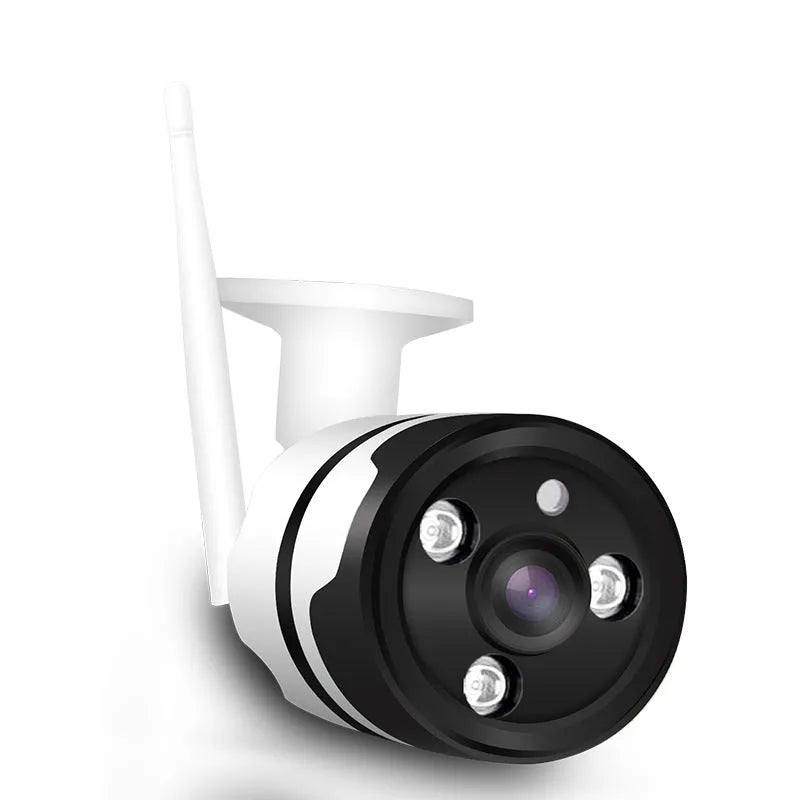

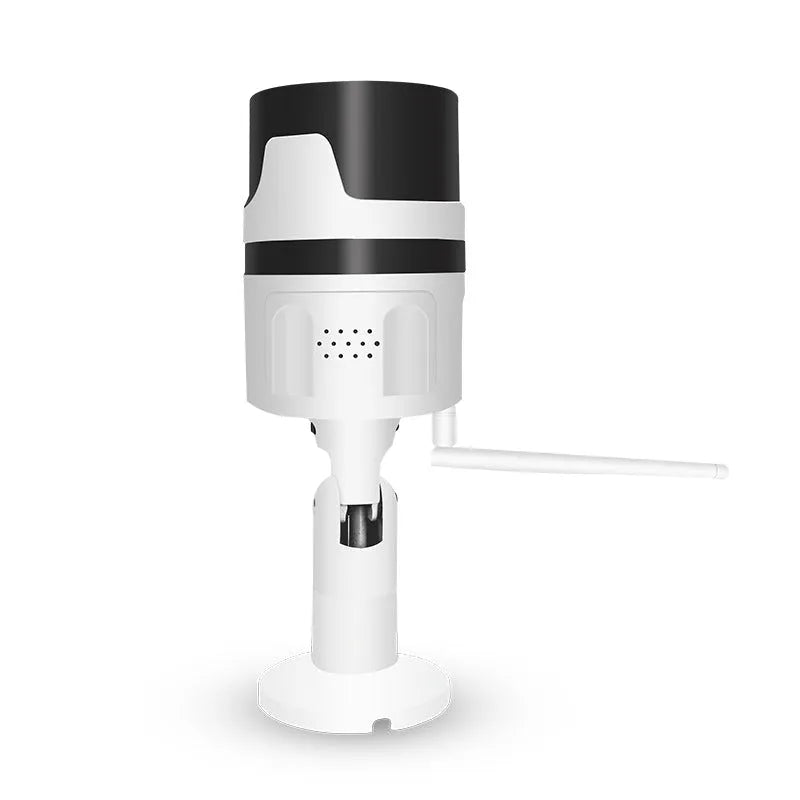

Internet HD Camera BC56-L6 with 185° Fisheye Lens for Outdoor Security

The BC56-L6 Internet HD Camera offers a wide 185-degree horizontal viewing angle through its built-in 2.5mm fisheye lens, making it suitable for outdoor areas where broad coverage is needed. It records in full 1080P High Definition at up to 25 frames per second, using H.264 compression for efficient storage on a TF card (up to 128GB). Motion detection is supported, and the camera sends push screenshot alerts directly to your mobile client, so you can stay informed of activity around your property. The camera also includes 10-metre infrared night vision with an IR-CUT automatic filter switch, ensuring visibility even in low-light conditions.

Features and Construction

This camera is built around a 1/3-inch Progressive Scan CMOS sensor paired with a 2.5mm fisheye lens. The white housing is designed for outdoor use, with an operating temperature range of 0°C to 60°C.

Sensor and Lens

A 1/3-inch Progressive Scan CMOS sensor delivers 1920x1080P resolution video. The 2.5mm fisheye lens provides a 185-degree horizontal field of view, ideal for monitoring wide outdoor areas with a single camera.

Night Vision Capability

Three infrared LEDs with a combined power consumption of 1W provide night vision up to 10 metres. The IR-CUT filter switches automatically based on light levels, and an image contrast control switch lets you adjust the LED output for clearer night-time footage.

Storage and Compression

Video is compressed with H.264 for TF card storage, while manual recordings saved to a mobile phone use MP4 format at 1080P. The camera supports TF cards up to 128GB, giving you flexibility for local recording without ongoing cloud fees.

Connectivity and Control

The camera connects over WiFi (IEEE 802.11b/g/n) and supports multiple network protocols including TCP/UDP, IP, HTTP, SMTP, DHCP, DDNS, UPNP, and NTP. It uses the 360eyes.Club platform for remote access.

WiFi and Protocol Support

WiFi 802.11b/g/n ensures reliable wireless connection. The broad protocol support makes integration into existing network setups straightforward, with compatibility for standard internet camera features.

Mobile Client and Alerts

Video playback and live viewing are handled through the mobile client. When motion is detected, the camera pushes screenshot captures to the client, allowing quick visual checks without streaming full video.

Multi-User Sharing

Up to five users can be granted access to the camera feed, making it easy to share monitoring duties with family members or colleagues.

Benefits and Buying Value

This camera reduces the number of units needed for wide-area coverage thanks to its 185-degree lens. Night vision out to 10 metres and local TF card storage keep setup simple and ongoing costs low.

Wide Coverage, Fewer Cameras

The 185-degree horizontal view covers a broad area from a single fixed mount, reducing installation complexity and equipment costs in outdoor locations.

Reliable Night Vision

Infrared illumination with automatic IR-CUT switching ensures the camera remains effective around the clock, without manual adjustment for day/night transitions.

Simple Local Recording

With support for TF cards up to 128GB, you can record continuously or on motion detection without relying on cloud subscriptions or network bandwidth for storage.
