1.6 Inch LCD Display for Raspberry Pi: Real-Time CPU Monitoring with Backlight Control

This 1.6-inch LCD display module offers a dedicated hardware solution for monitoring your Raspberry Pi's core system metrics. By providing a constant, real-time readout of CPU information directly on a small integrated screen, it removes the dependency on a separate monitor or SSH session for basic diagnostics. The inclusion of a manual backlight switch adds a practical layer of control, letting you manage visibility and power use—a handy feature for always-on smart home hubs or media servers tucked away in a cabinet.

Features and Build Quality of the Pi LCD Display

This section details the specific components and construction of this LCD display module, explaining how its design serves its primary function of system monitoring in compact Raspberry Pi projects.

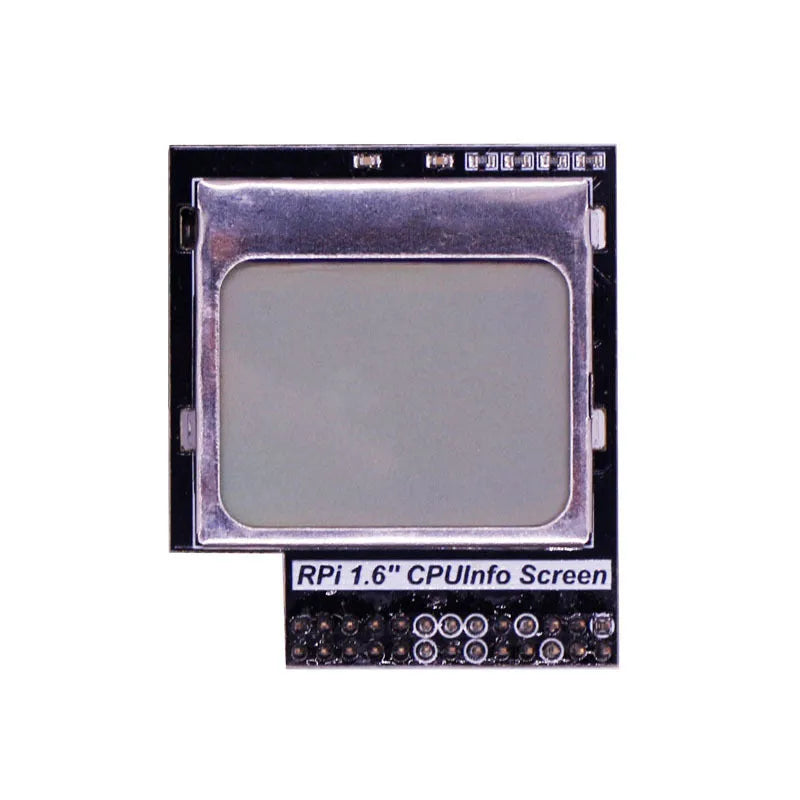

Compact LCD Screen Design

The centrepiece is a 1.6-inch Liquid Crystal Display (LCD). This screen size provides enough space to clearly display several lines of text-based system data, such as CPU load, temperature, and memory usage, without occupying significant physical space on your Raspberry Pi setup. Its digital nature ensures a sharp, flicker-free readout that is easy to parse at a glance from a short distance.

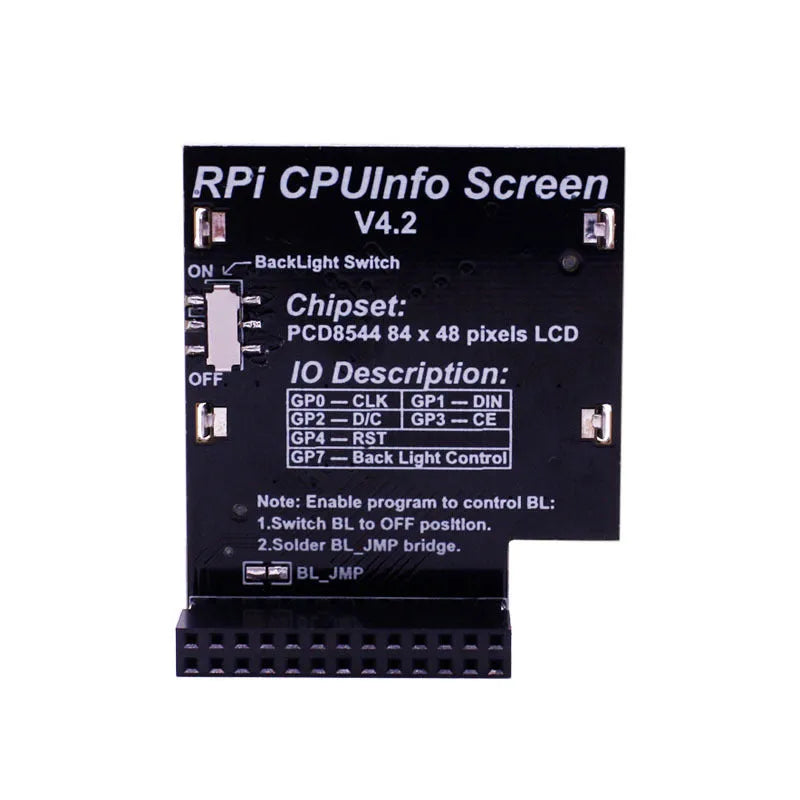

Backlight Switch Functionality

The module includes a physical backlight switch. This is a simple but effective feature that allows you to completely disable the screen's illumination. When the backlight is off, the display may still be faintly visible in bright light, but it draws minimal power and emits no light—ideal for reducing distraction in a home cinema setup or for conserving energy on a battery-powered project where every milliamp counts.

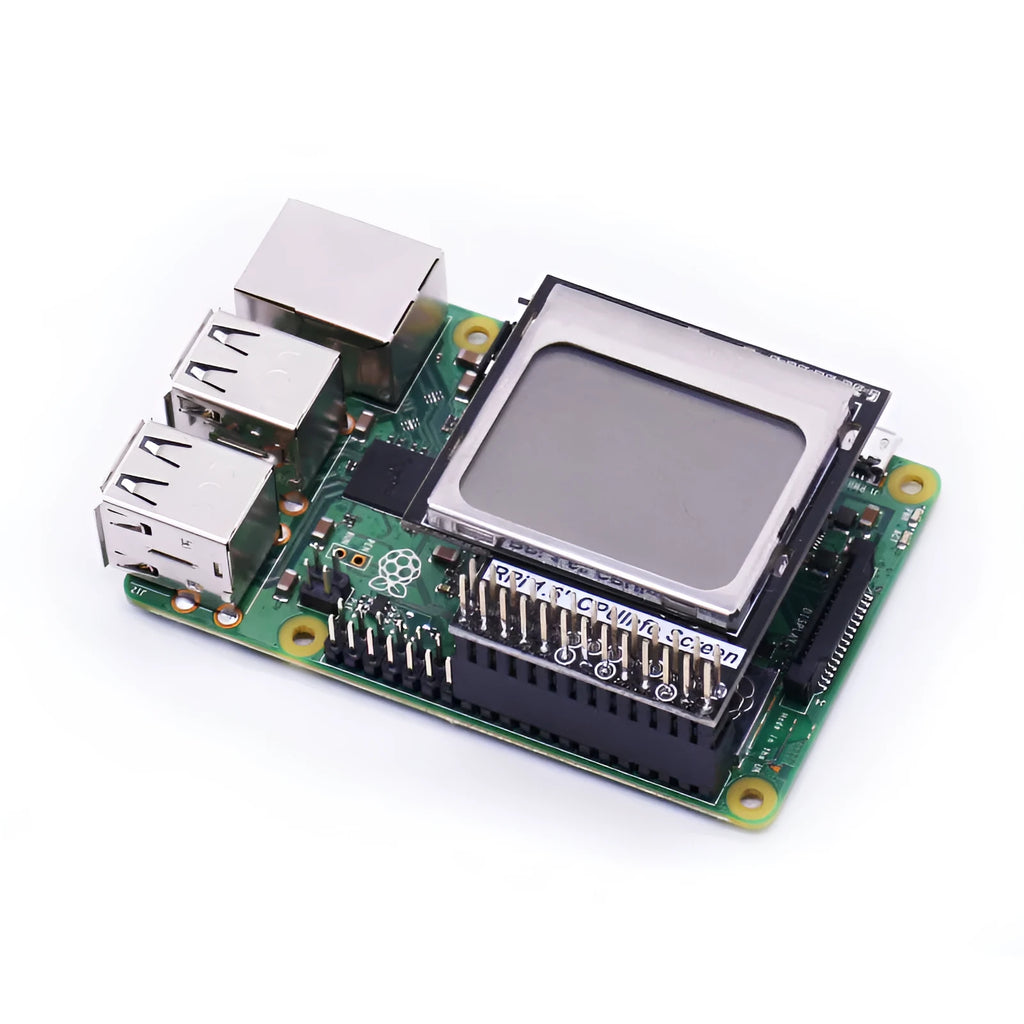

Direct Plug-in Connectivity

The display is designed for straightforward integration. It connects directly to the General Purpose Input/Output (GPIO) pins on your Raspberry Pi, typically requiring no soldering or complex wiring. This plug-and-play approach, supported by specific driver software, means you can have it up and running, displaying live system data, within minutes of unboxing, making it accessible for hobbyists and professionals alike.

Practical Applications for the LCD Display

This display module finds its purpose in scenarios where continuous, passive system feedback is more useful than intermittent checks via a remote connection. Its applications range from professional prototyping to everyday smart home management.

Development and Debugging Use

For developers working on Raspberry Pi software or hardware projects, this display acts as a persistent console. You can monitor CPU load spikes during code execution or keep an eye on system temperature during stress tests without dedicating a full monitor to the task. It’s particularly useful for headless servers or IoT devices during the development phase, providing instant visual feedback on system health.

Smart Home Hub Monitoring

In a smart home context, a Raspberry Pi often serves as a central hub for Home Assistant, Node-RED, or other automation software. Mounting this small display on the case provides instant, silent status updates. The feeling of reassurance comes from simply walking past your hub and seeing a stable CPU temperature and load, confirming everything is running smoothly without needing to open an app. The ability to switch the backlight off at night means it won't glow in your utility room or living space.

Compact System Status Panel

Beyond pure diagnostics, the display can be repurposed as a compact information panel. With custom scripts, it can cycle through different data sets, showing network statistics, sensor readings from connected devices, or even simple messages. Its small footprint allows it to be integrated into very compact enclosures or mounted in spaces where a larger screen would be impractical, adding functionality without clutter.

Benefits of Integrating This Display

Choosing this module for your Raspberry Pi project adds a layer of convenience and practical oversight, translating technical specs into tangible user advantages.

Long-Term Reliability and Value

LCD technology is mature and reliable, with a long operational lifespan suitable for always-on applications. Unlike connecting a full HDMI monitor which consumes significantly more power, this low-power display offers a permanent monitoring solution for a modest one-time cost. It can outlast several project iterations, providing continuous value as you upgrade your Raspberry Pi model or software.

User Experience and Peace of Mind

The primary emotional benefit is peace of mind, which is directly provided by the constant, visible system readout. There's a tangible confidence in seeing your Pi's CPU temperature holding steady at 45°C rather than wondering if it's silently overheating inside an enclosure. This immediate visual feedback loop simplifies management and can alert you to issues before they cause system instability.

Making the Decision to Purchase

If your Raspberry Pi project benefits from an always-visible system status indicator without the bulk and power draw of a full monitor, this 1.6-inch LCD with its backlight switch is a purpose-built solution. It delivers specific, measurable data directly to your workspace or living environment in the most efficient format possible. Consider it for your next smart home hub, network appliance, or development rig where clear, concise information is key.
