Industrial Air Compressor Pressure Regulating Valve with 0.5-0.8 MPA Range for 220V and 380V Systems

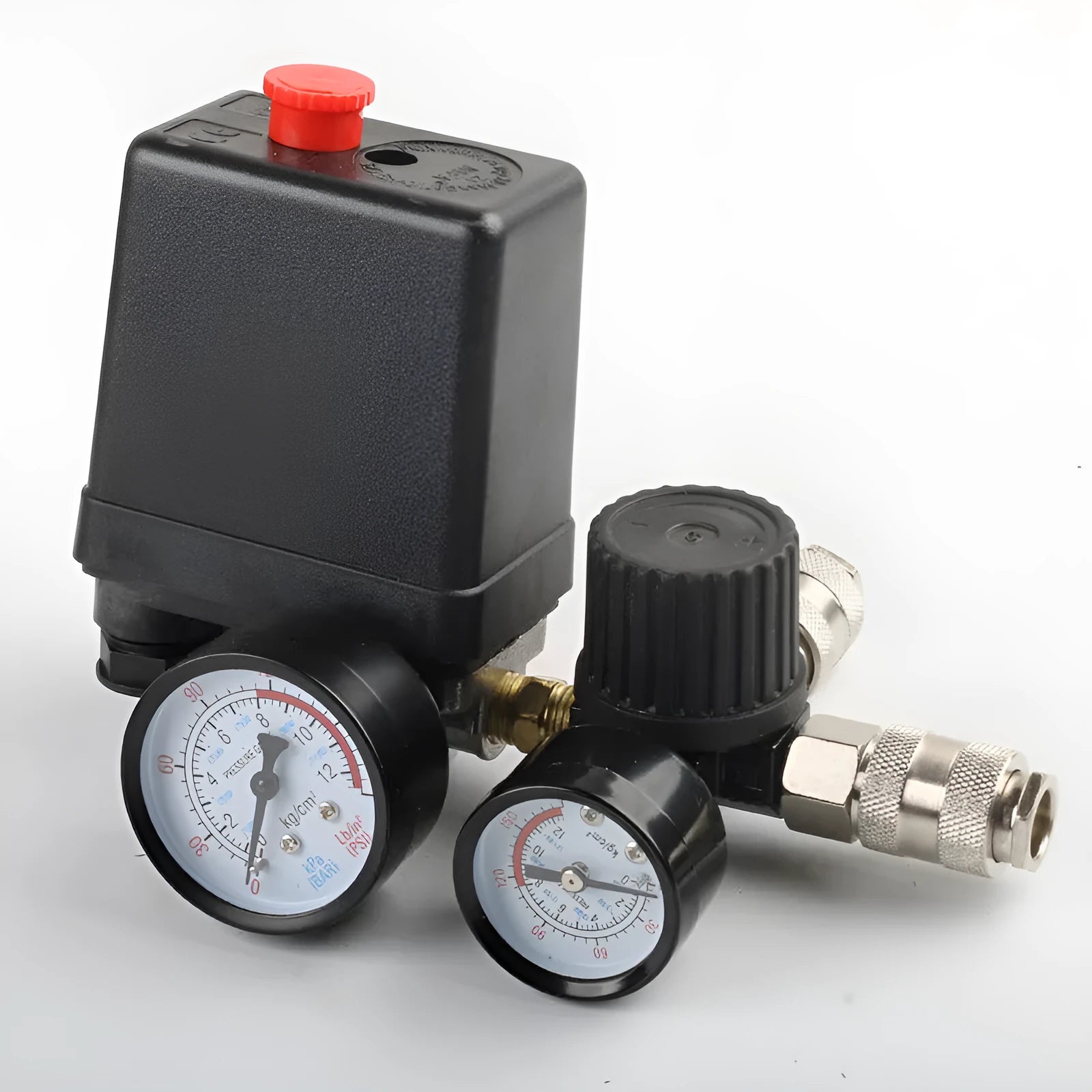

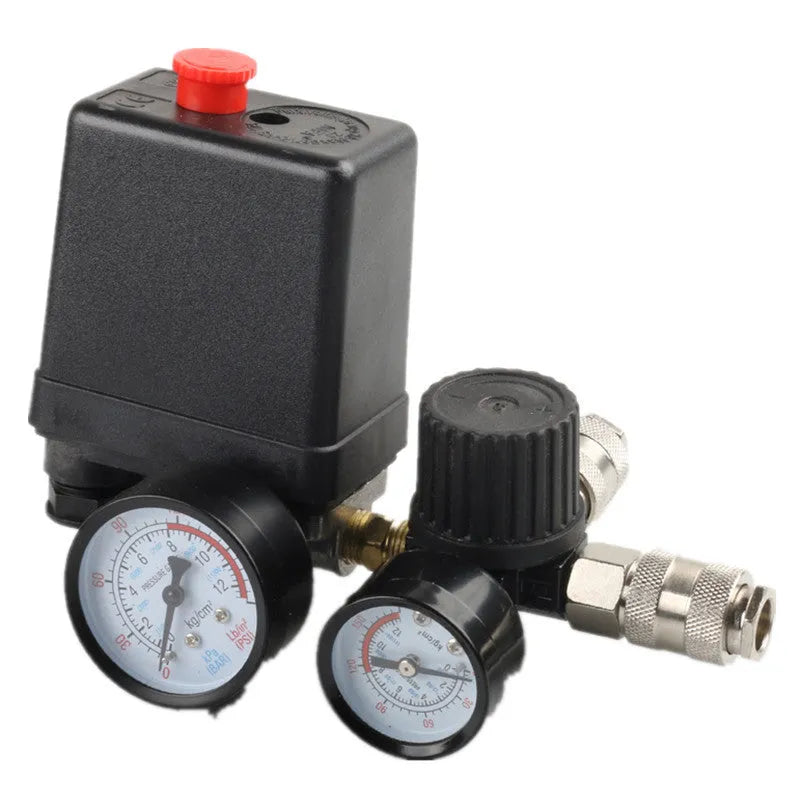

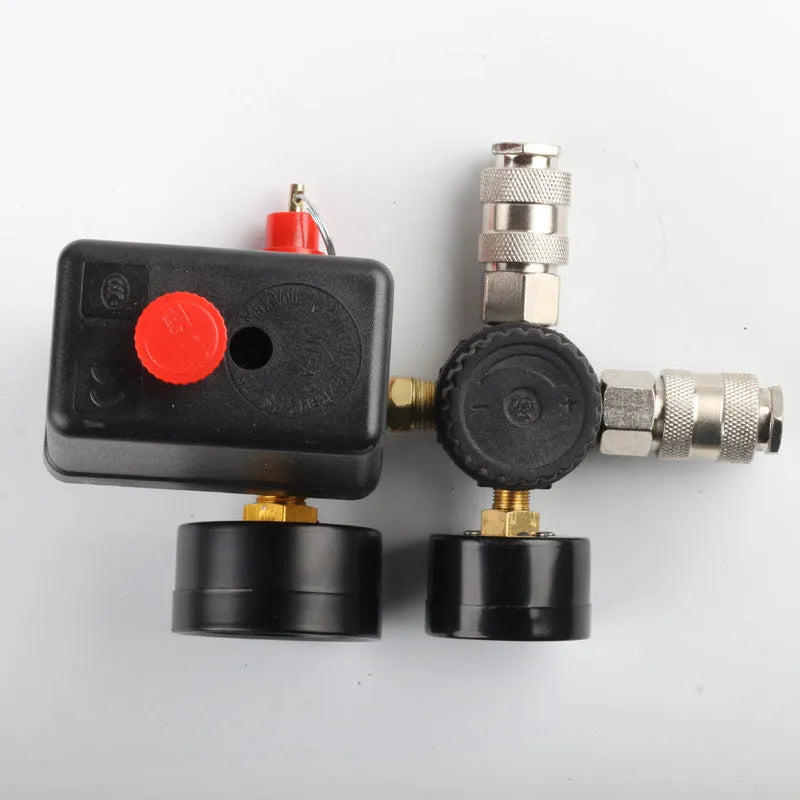

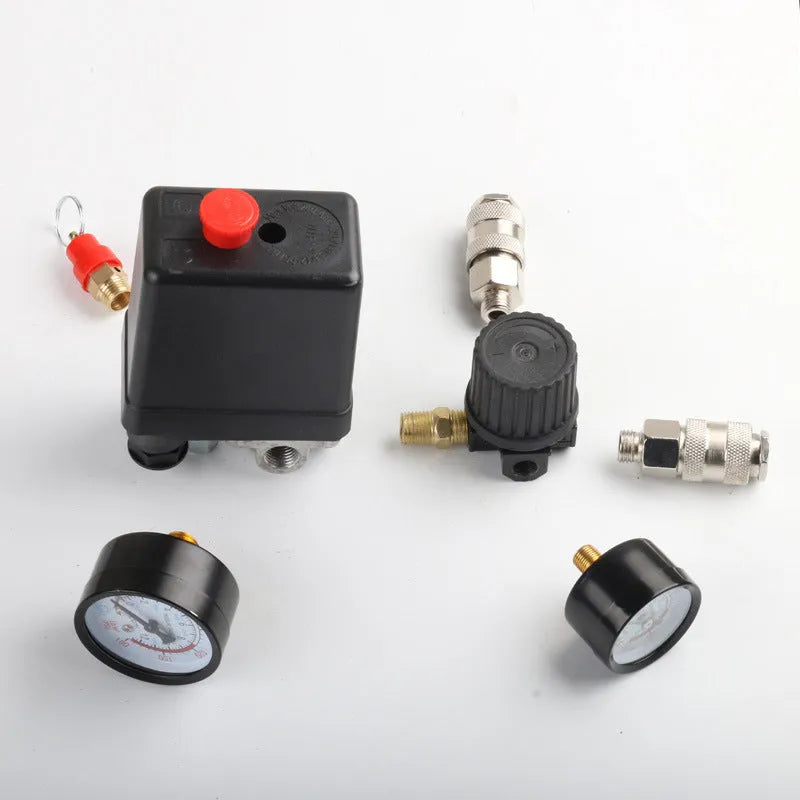

This European-style pressure regulating valve assembly is engineered for precise control in industrial air compressor applications. It provides a defined switching pressure range of 0.5 to 0.8 MPA (equivalent to 5-8 BAR or 90-120 PSI), enabling consistent operation for air-powered tools and machinery. The unit is available in two configurations to match common electrical supplies: a 220V switch and a 380V switch, each rated for a maximum current of 20A. The switch box is clearly printed with its operational limits, including Max.Volt240, Amp.20, MaxBar12, and PSI175, ensuring users can easily verify compatibility and safe working parameters. Designed with a normally closed contact method and standardised connection ports, this valve is built for integration into professional workshop or factory air systems where reliable pressure regulation is required.

Features and Construction

This pressure switch assembly combines functional design with clear specification labelling for straightforward installation and use. Its construction focuses on providing reliable pressure sensing and switching within the stated parameters.

Material and Build

The assembly is built for industrial pneumatic control, featuring a pressure switch housed within a compact unit. The construction supports a working pressure range of 5-8 KG and incorporates a pressure relief port with a 9.5 mm outer diameter. The switch itself is rated for a lifespan of 80,000 actuation cycles, indicating its design for repeated use over time in demanding environments. The product's net weight is 635 grams, with the gross weight including its small packaging totalling 720 grams, reflecting its robust yet manageable physical build.

Size and Practical Fit

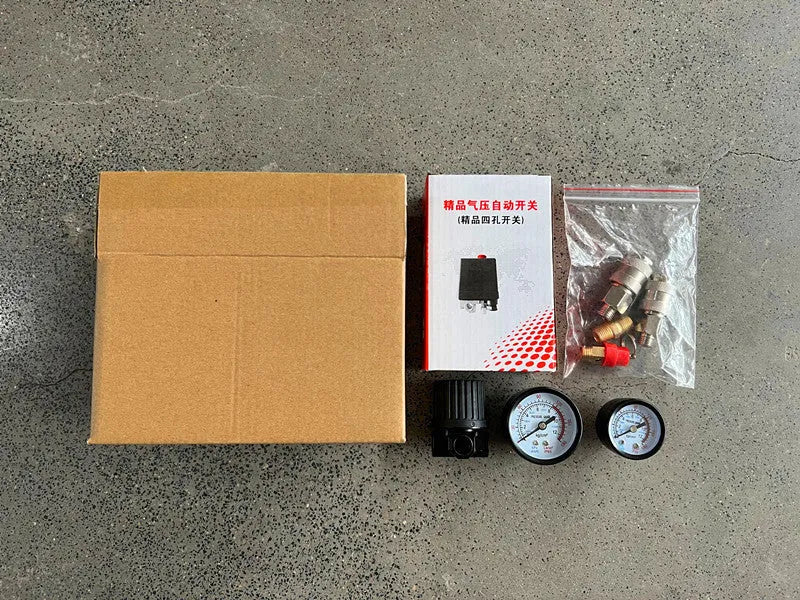

The entire product is supplied in a small box measuring 185 mm in length, 100 mm in width, and 110 mm in height, making it easy to store and handle. The key connection points are standardised: it uses a 12 mm (1/4 inch) connector for integration into air lines and a 6 mm diameter exhaust pipe. These dimensions allow technicians to assess spatial and connection compatibility with existing compressor setups before purchase, reducing the risk of incorrect fitting.

Uses and Placement

This pressure regulating valve is suited for scenarios where maintaining a specific air pressure band is crucial for tool performance or process consistency.

Event or Professional Use

In professional workshops, manufacturing facilities, or automotive garages, this switch can be installed on air compressor systems to automate the cut-in and cut-out pressure for tools like impact wrenches, spray guns, or pneumatic actuators. The ability to select a 220V or 380V model allows it to be matched to the site's specific electrical infrastructure. The precise 0.5-0.8 MPA range is practical for many common industrial air tools that operate within medium pressure bands.

Everyday Home Use

For advanced DIY enthusiasts or home workshops with capable air compressor setups, this valve provides a more professional level of control than basic regulators. It can help maintain optimal pressure for hobbyist painting, inflation tasks, or using pneumatic nailers, potentially improving results and tool longevity by preventing pressure fluctuations. However, users must ensure their compressor system and electrical supply are compatible with the valve's 220V requirement and connection specifications.

Benefits and Buying Value

The value of this product lies in its specified performance parameters, clear labelling, and dual voltage option, which aid in selecting the correct component for a system.

Reuse and Low Maintenance

The rated lifespan of 80,000 switching cycles suggests the component is built for extended service without frequent replacement, a key consideration for systems that cycle on and off regularly. This durability, combined with the straightforward connection design using standard 12 mm and 6 mm fittings, can contribute to lower long-term maintenance needs. The clearly printed maximum ratings on the switch box also help prevent misuse that could lead to premature failure.

Why Choose This Product

This pressure switch is chosen for its exact specifications: the defined 0.5-0.8 MPA switching range, the choice between 220V and 380V operation, and the comprehensive set of provided measurements from box size to port diameters. It removes guesswork for buyers who need a component with known tolerances and compatibility. The inclusion of both net and gross weights and all relevant electrical and pressure ratings supports informed purchasing decisions, especially for those replacing a failed unit or upgrading a system's control capability.
