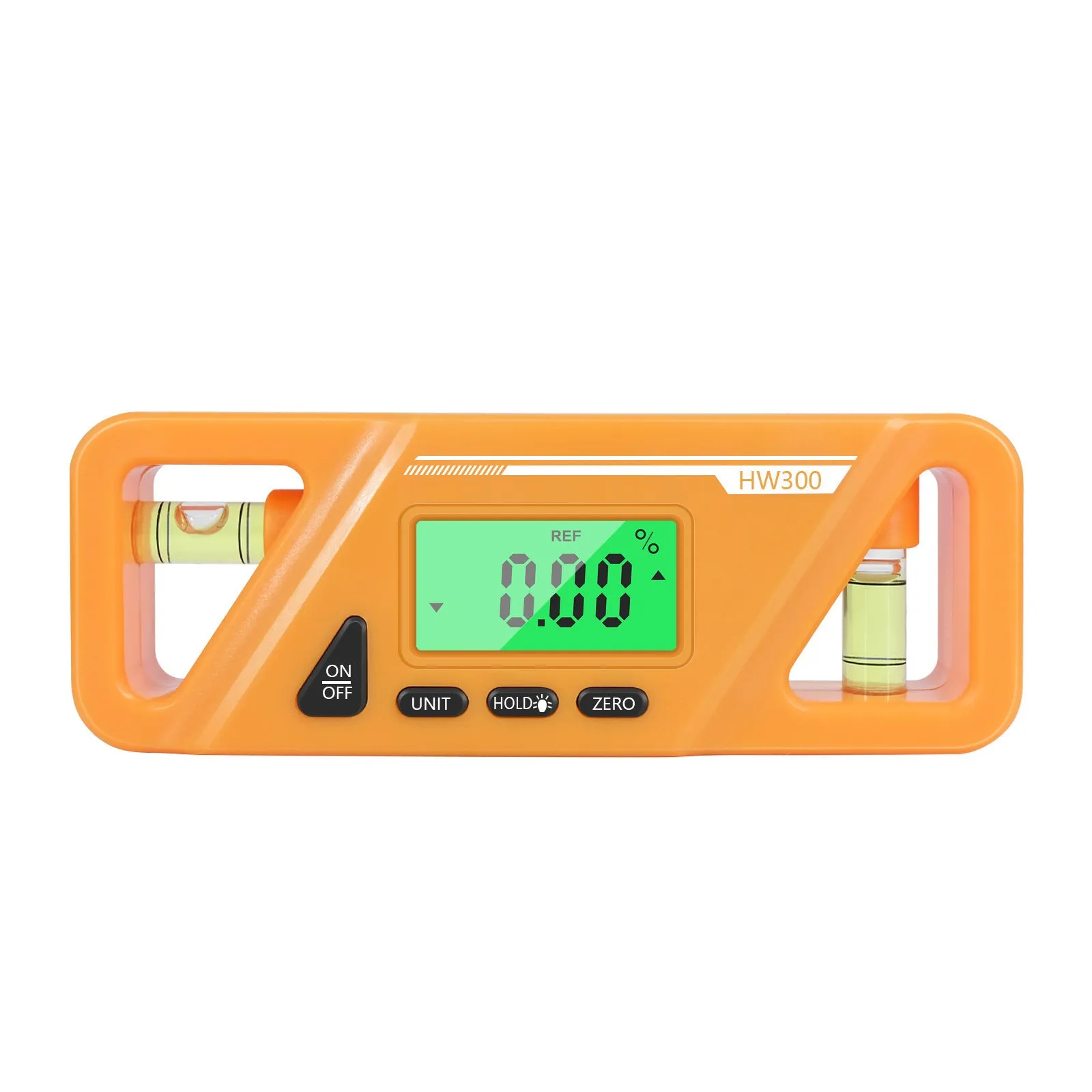

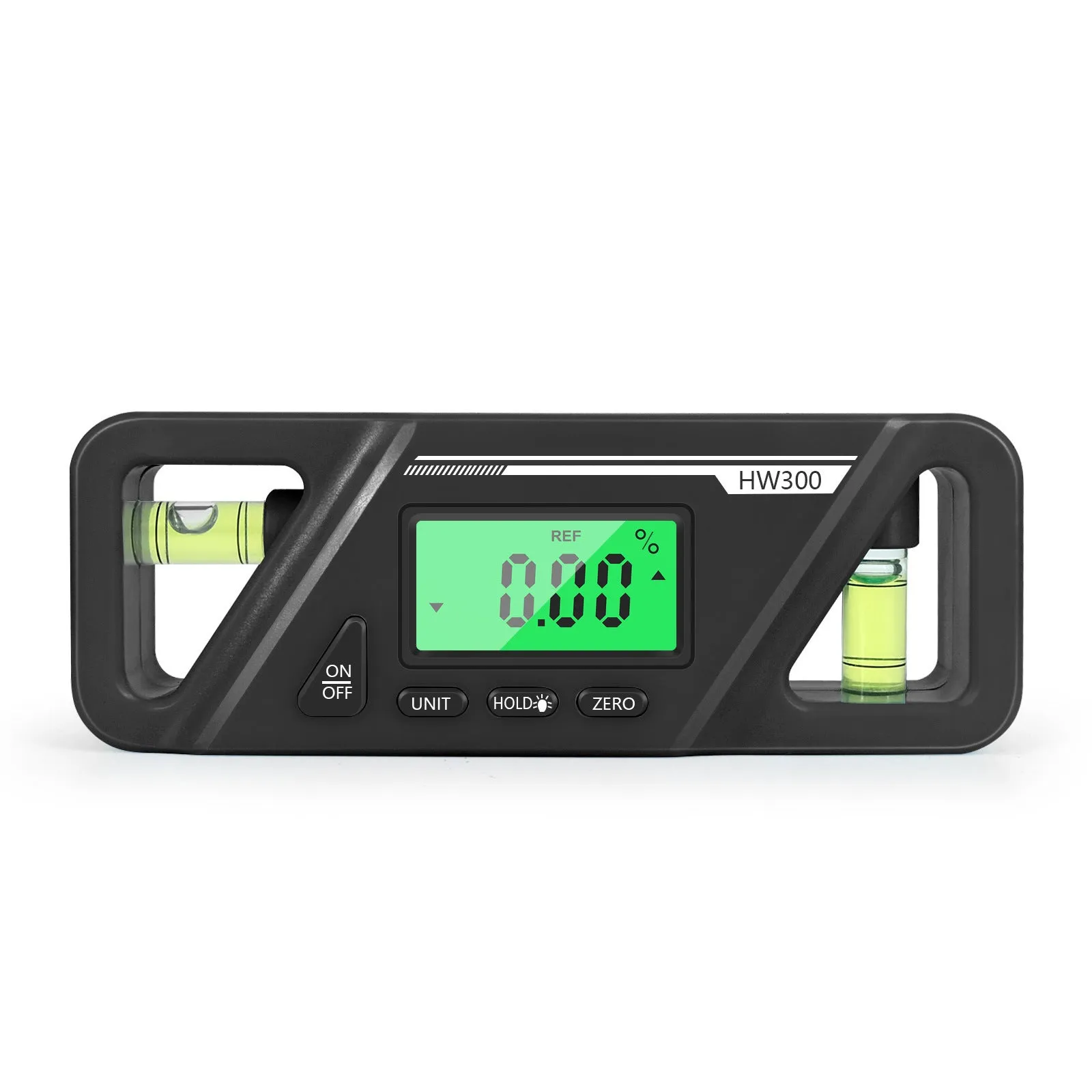

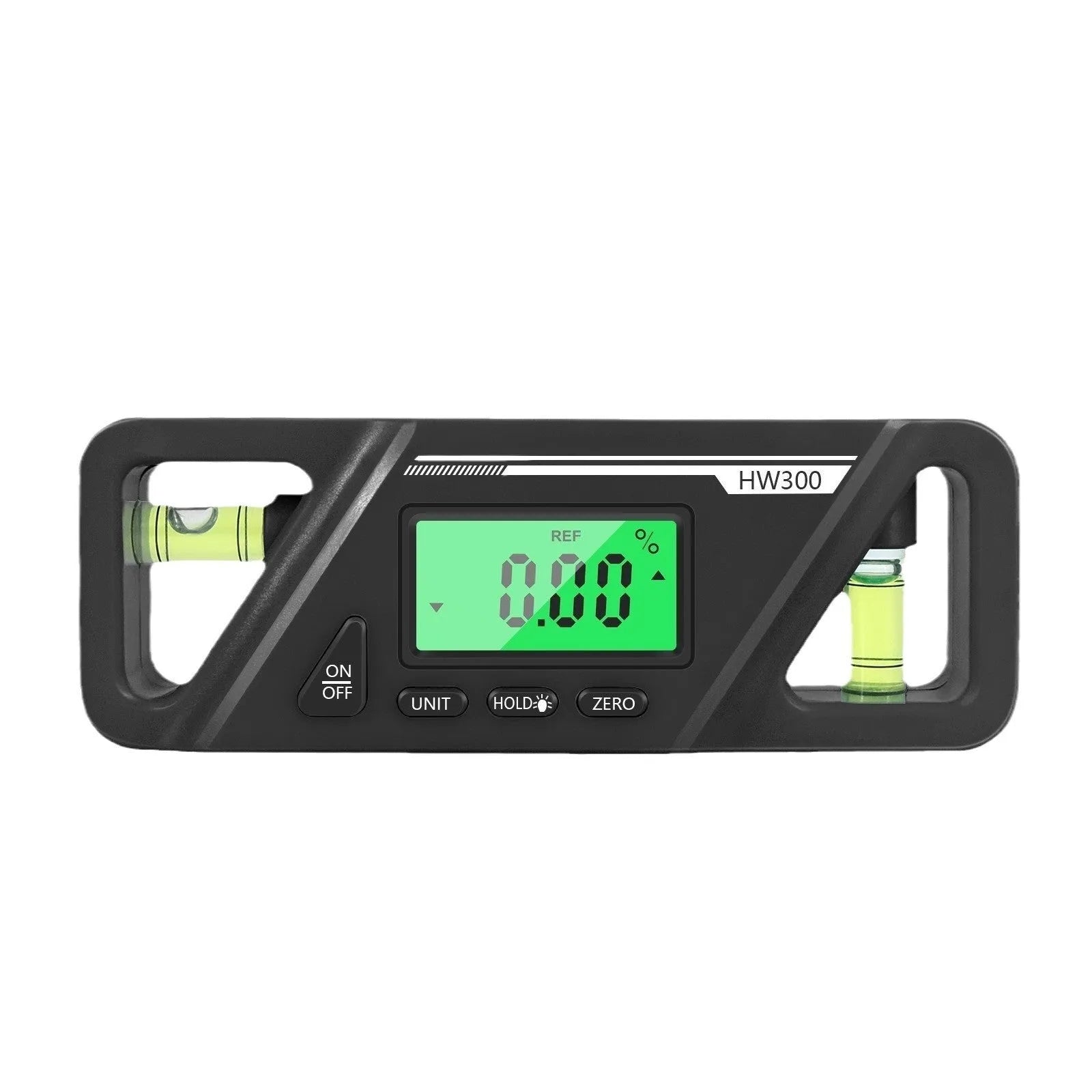

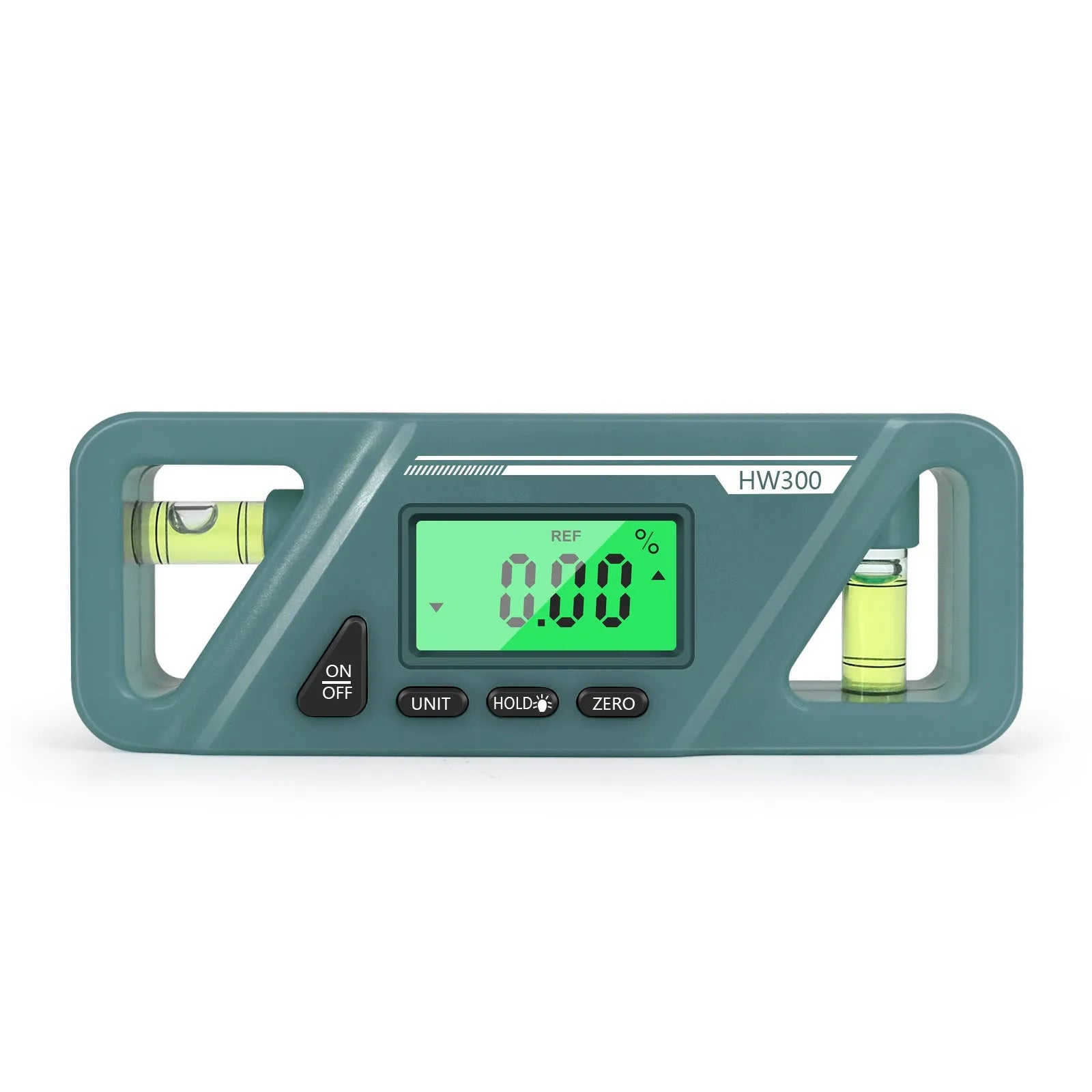

Digital Inclinometer with Magnetic Base for 90 Degree Angle Measurement and Slope Conversion

This digital inclinometer is a specialised measurement tool designed to deliver precise angle readings for a wide range of tasks, from carpentry and metalworking to machinery alignment and construction. Its core purpose is to provide an accurate, digital alternative to traditional spirit levels and protractors, with the added convenience of a magnetic base that secures it directly to workpieces. The device measures angles across a broad range, offers high resolution, and includes practical functions like data locking and measurement mode conversion, making it a versatile tool for professionals and serious DIY enthusiasts who require reliable angular data.

Features and Construction

The inclinometer is built around its measurement capabilities and user-centric design. Its construction prioritises functionality and portability, housing sensitive electronics in a durable plastic ABS casing that keeps the overall weight low.

Material and Build

The tool's housing is constructed from plastic ABS, chosen for its balance of durability and light weight, resulting in a net device weight of just 56g (without battery). This material choice contributes to the tool's portability and helps protect the internal digital display and measurement components from minor impacts during use on a workshop bench or in a tool bag.

Size and Practical Fit

With compact dimensions of 115mm x 42mm x 22mm, the inclinometer is designed for easy handling and storage. This portable size means it can be conveniently carried in a pocket or tool belt and used in conjunction with other measuring instruments. Its small profile allows it to fit into tight spaces on machinery or frameworks where angle verification is needed, expanding the practical measurement range of a user's toolkit.

Uses and Placement

The tool's design supports applications where precise angular alignment or measurement is critical. Its magnetic base and digital functions make it suitable for both static measurement and dynamic setup tasks.

Event or Professional Use

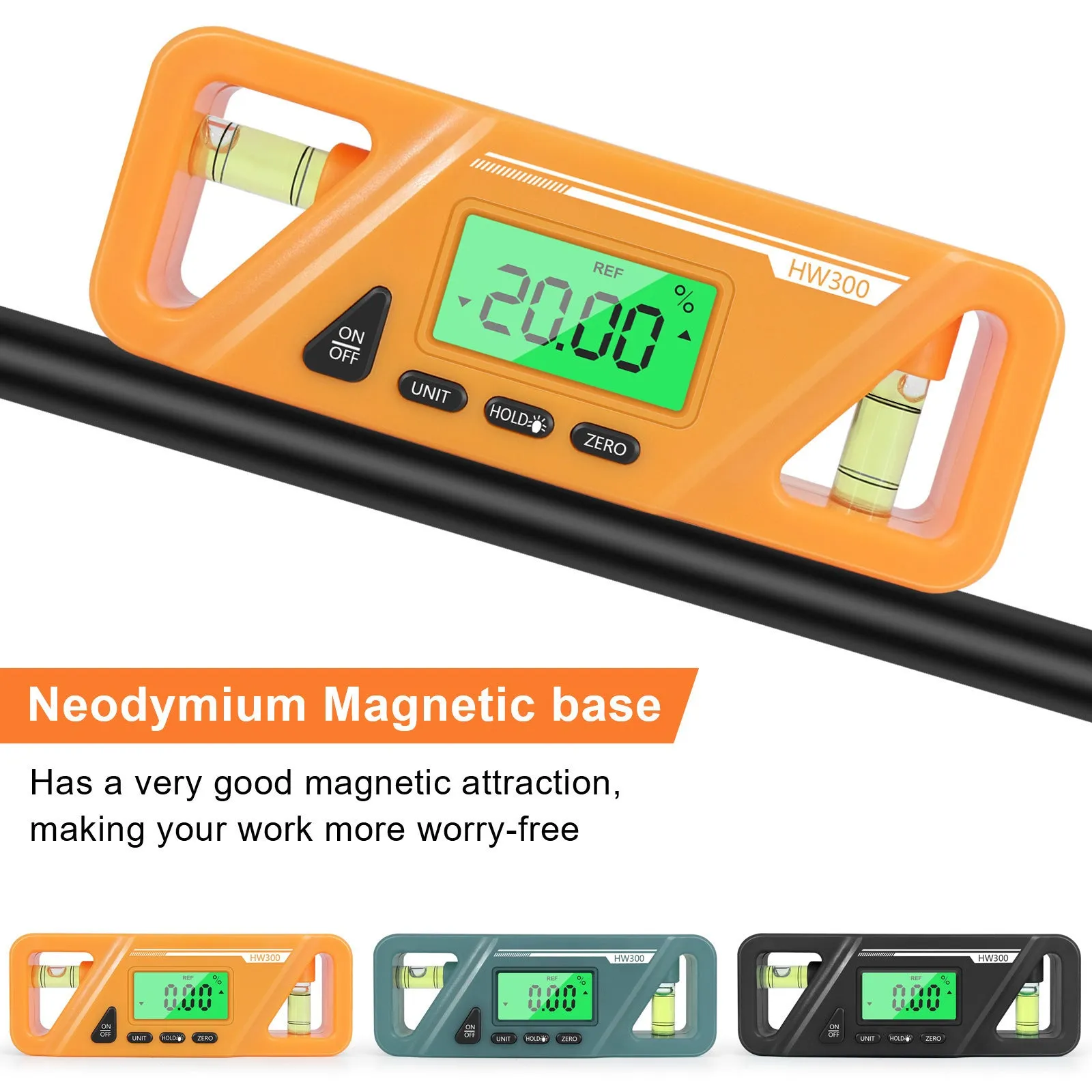

In professional environments like machining workshops, fabrication, or site construction, the magnetic adsorption feature is key. It allows the meter to be fixed securely to lathes, saw tables, structural steel, or other ferrous metal workpieces, enabling hands-free operation while adjustments are made or readings are taken over time. The high accuracy of ±0.2° and repeatability of 0.1° provide the reliability needed for quality control, machinery calibration, and ensuring structural components meet specified angles.

Everyday Home Use

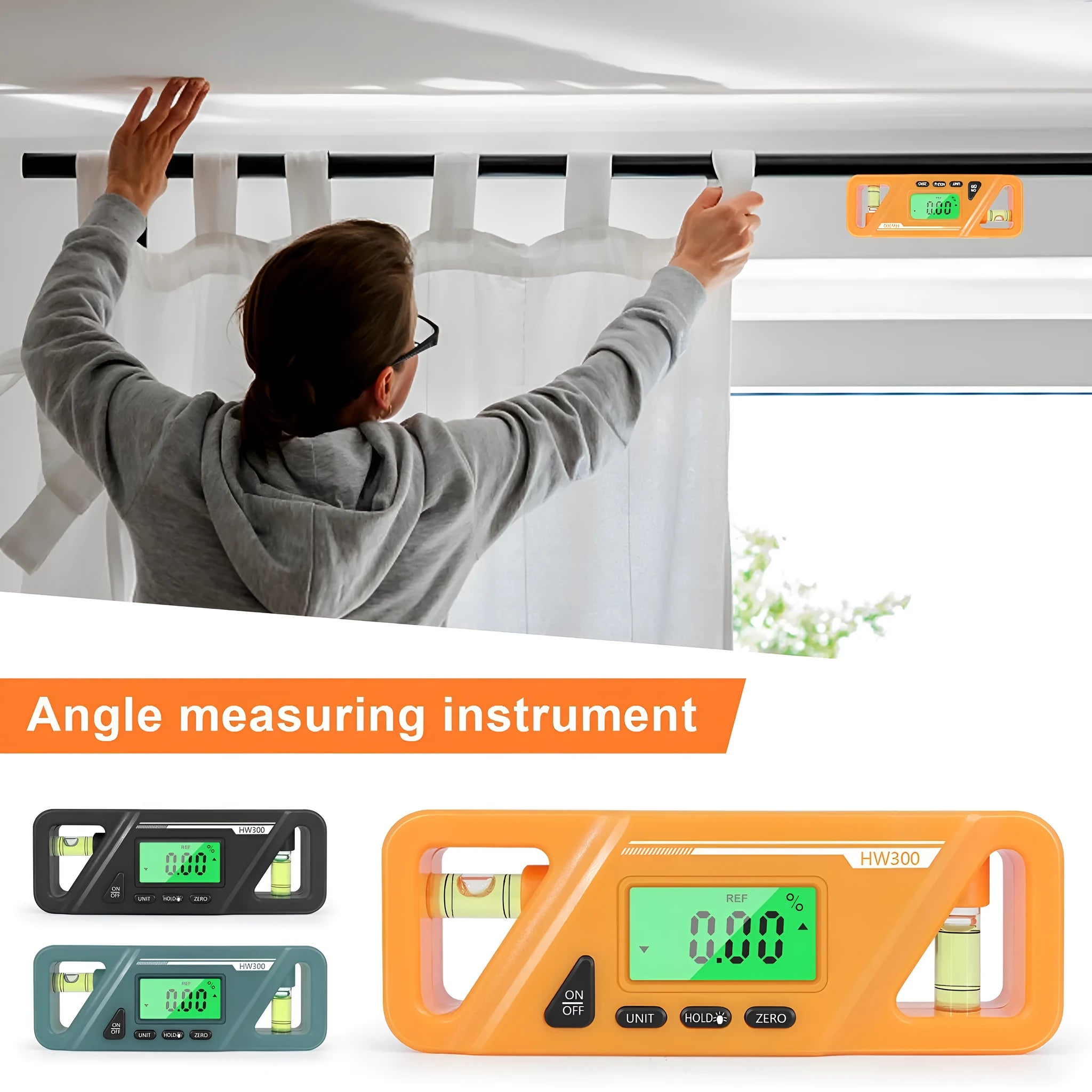

For the home workshop or serious DIY project, this tool brings professional-grade angle measurement to tasks like setting mitre saws, aligning fence posts, checking the pitch of a roof or shed, or installing shelving and cabinetry. The ability to convert between angle and slope readings is particularly useful for landscaping projects involving gradients. The data locking function simplifies working alone, as a measurement can be captured and held on the display while you step away to mark or cut material.

Benefits and Buying Value

The value of this digital inclinometer lies in its precision, specialised features, and the practical efficiencies it introduces to measurement tasks compared to manual methods.

Reuse and Low Maintenance

As a digital electronic tool, it is designed for repeated use across countless projects. Its solid-state design with no moving mechanical parts (beyond buttons) minimises wear. Maintenance is primarily limited to battery replacement and ensuring the magnetic base and measurement surfaces are kept clean for optimal adhesion and accuracy. Operating within the stated 0°C to 40°C temperature range will help maintain its specified performance over time.

Why Choose This Product

This inclinometer stands out for combining several key features in one portable device: a magnetic base for stability, a high-resolution digital display for clarity, and flexible measurement modes. The magnetic attachment solves the common problem of holding a level or protractor steady on a sloped or vertical metal surface. The digital readout removes the parallax error and estimation inherent in reading analogue scales, while the 0.05° resolution provides finer detail than most basic spirit level vials. For anyone regularly needing to measure, set, or verify angles, it consolidates multiple tools into one reliable, data-accurate instrument.
