35mm Hinge Punch Locator: An Adjustable Aluminium Alloy Tool for Cabinet and Wardrobe Installation

Accurately installing hinges on cabinet doors and wardrobe units is a critical step in woodworking and home DIY that demands precision. A misaligned hinge can lead to doors that sag, bind, or fail to close properly. This hinge locating rule is designed to solve that specific problem by providing a tangible, adjustable guide for marking drill holes. It translates the often-complex measurement process into a simple, repeatable action, making it a practical tool for household projects. Its construction from materials like aluminium alloy and a treated hard alloy blade indicates a focus on practical durability for its intended use case, supporting more confident DIY work.

Features and Construction

This tool combines specific design features with stated material choices to fulfil its function as a hinge installation aid. Its build is centred on providing an accurate, adjustable guide that fits a common hinge size used in home cabinetry.

Material and Build

The main body of the hinge locating rule is made from aluminium alloy, a material choice that typically offers a good balance of lightness and strength for hand tools. The included limit tapper blade is constructed from hard alloy. According to the source, this blade has undergone a high-temperature heat treatment process, which is a method used to enhance the hardness and wear resistance of metal components. This suggests the blade is intended to maintain its sharpness through repeated use when marking drill points on wood surfaces.

Size and Practical Fit

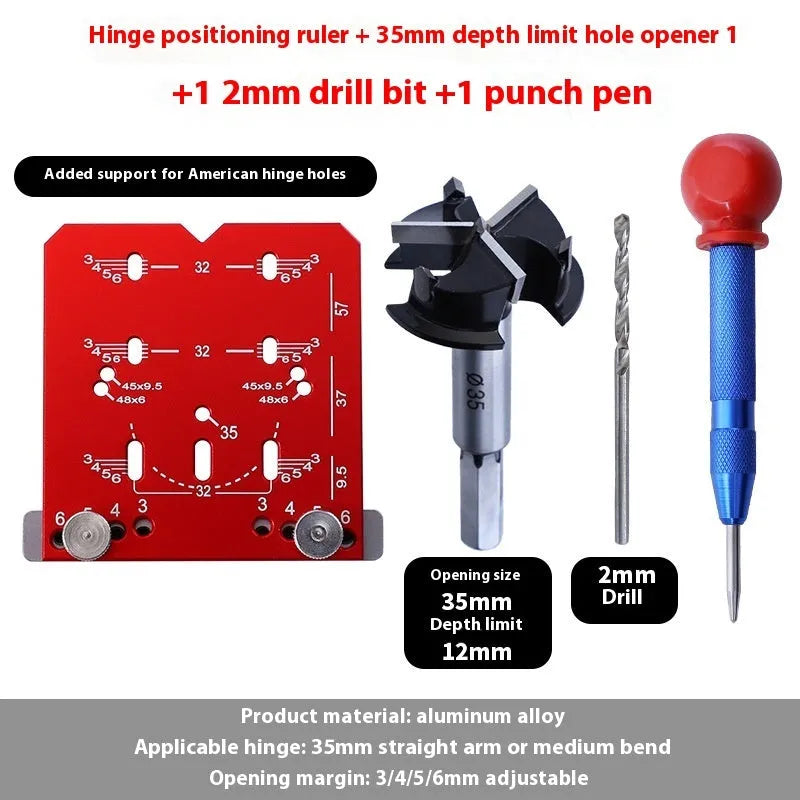

The core function of this tool is its compatibility with 35mm hinges, specifically the extended arm and middle bend types commonly found in kitchen cabinets and bedroom wardrobes. Its key feature is the adjustable opening margin, which can be set to 3mm, 4mm, 5mm, or 6mm. This adjustability allows the user to set the precise distance (or margin) from the edge of the door to the hinge hole, accommodating different design requirements or personal preferences without requiring multiple dedicated tools.

Uses and Placement

The primary application for this locating rule is in household woodworking and furniture assembly. It bridges the gap between professional cabinet fitting and accessible DIY, providing a method to achieve consistent, reliable results in common home improvement scenarios.

Event or Professional Use

While designed for household use, the tool's specific design for a standard 35mm hinge size and its adjustable margins make it suitable for repetitive tasks. A handyman, furniture assembler, or someone undertaking a multi-cabinet kitchen refurbishment would benefit from its ability to quickly and accurately replicate the same hinge placement across multiple doors, improving efficiency and reducing measurement errors compared to using a ruler and pencil alone.

Everyday Home Use

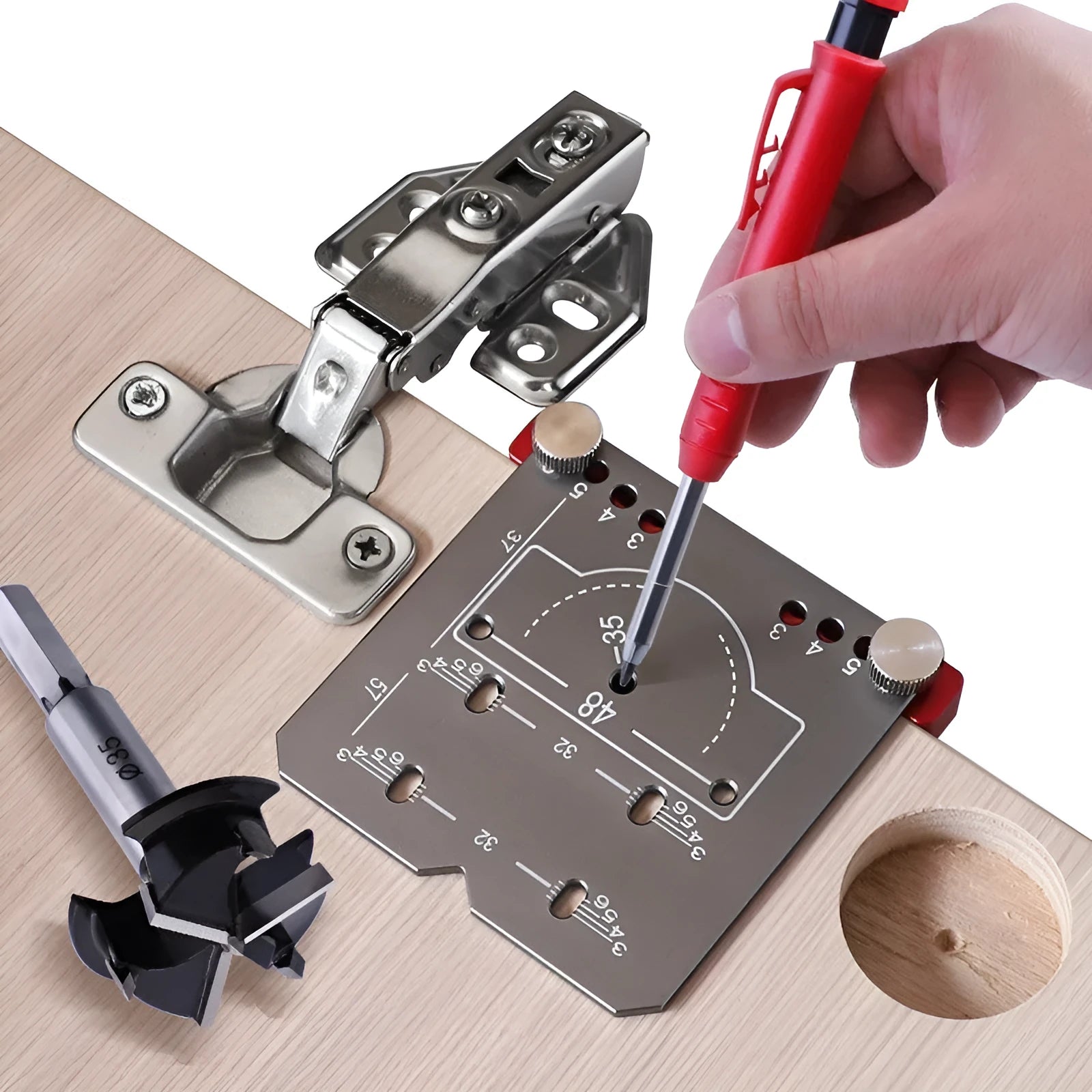

For the typical DIY enthusiast, this tool simplifies what can be a daunting part of assembling flat-pack furniture or building simple cabinets. The act of marking hinge holes becomes a matter of selecting the margin, clamping or holding the rule in place, and using the integrated blade to make an indent. This process reduces the chance of mistakes that could ruin a door panel, making projects like installing a new wardrobe, fitting kitchen cabinet doors, or building a bookshelf with hinged doors more approachable and likely to succeed.

Benefits and Buying Value

The value of this product lies in its targeted problem-solving and the practical advantages derived from its stated materials and design. It is a single-purpose tool that performs its specific function effectively, potentially saving time, materials, and frustration.

Reuse and Low Maintenance

As a metal tool, it is inherently reusable for future projects. The aluminium alloy body is resistant to rust and the hard alloy blade, treated for wear resistance, is designed for repeated use. Maintenance is minimal; keeping the tool clean and stored safely is typically all that's required. Its durability means it can be a long-term addition to a DIY toolkit, ready for any cabinet or wardrobe hinge installation task that arises.

Why Choose This Product

Choosing this hinge punch locator comes down to a need for accuracy and simplicity in a common DIY task. Compared to makeshift measuring methods, it provides a dedicated, physical guide that removes guesswork. The adjustable margin feature offers flexibility for different projects without needing separate tools. The material specification, particularly the heat-treated hard alloy blade, indicates an attention to functional longevity for its price point. It is a practical investment for anyone who plans to undertake cabinetry work, aiming to achieve a more professional finish while minimising the risk of costly errors.
