AD16-22SM Sound and Light Buzzer: Multi-Voltage Industrial Alarm for 22mm Panels

Engineered for clarity in noisy industrial settings, the AD16-22SM is a combined audible and visual alarm indicator designed for integration into control panels and electrical cabinets. It serves a critical role in secondary distribution applications, providing an unmistakable signal for machine status, fault conditions, or operational alerts. The unit combines a bright, flashing LED with an intermittent sound buzzer, ensuring the warning is received both visually and audibly. With options for red, green, or yellow indicators and compatibility with common AC and DC voltages, it offers a flexible solution for various signalling requirements across different systems and standards.

Features and Construction

The AD16-22SM is built around core specifications that define its performance and application fit. Its design prioritises reliable signalling and straightforward panel integration.

Material and Build

The buzzer utilises an LED light source for the visual alert component, providing the stated brightness level of ≥100 candela per square metre. The construction adheres to the requirements for its 3C certification, a Chinese compulsory product certification indicating conformity to national safety standards. This certification underpins its suitability for regulated electrical applications. The unit's insulation resistance is rated at ≥2 MΩ, contributing to its safe operation within the specified electrical parameters.

Size and Practical Fit

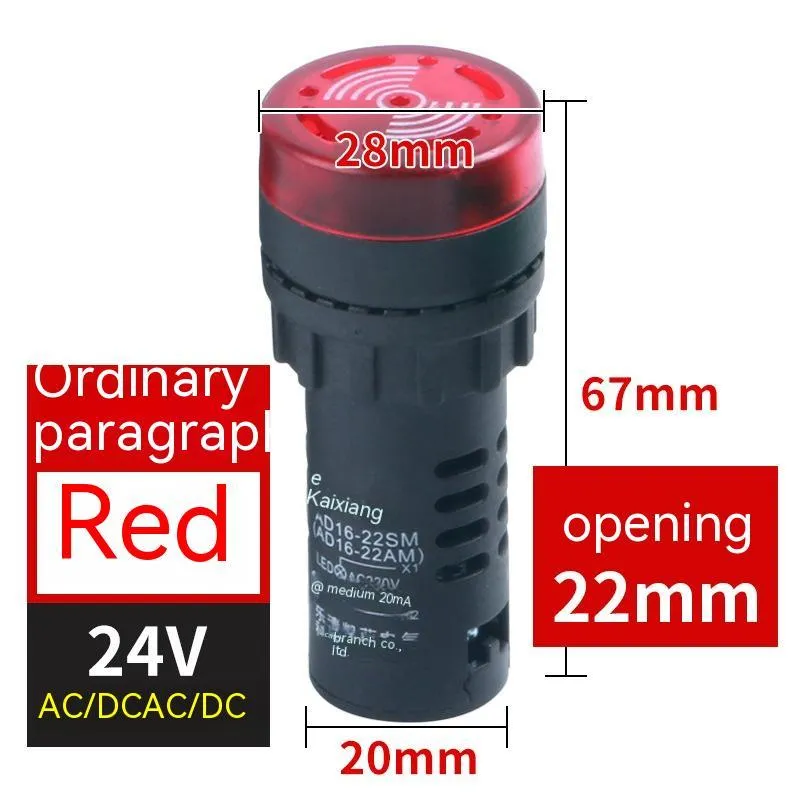

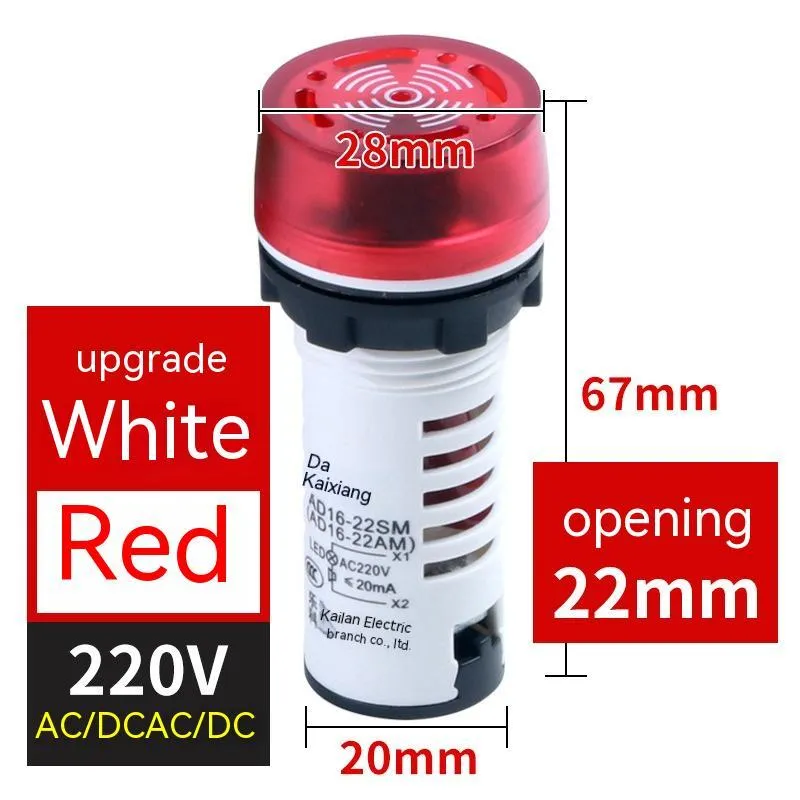

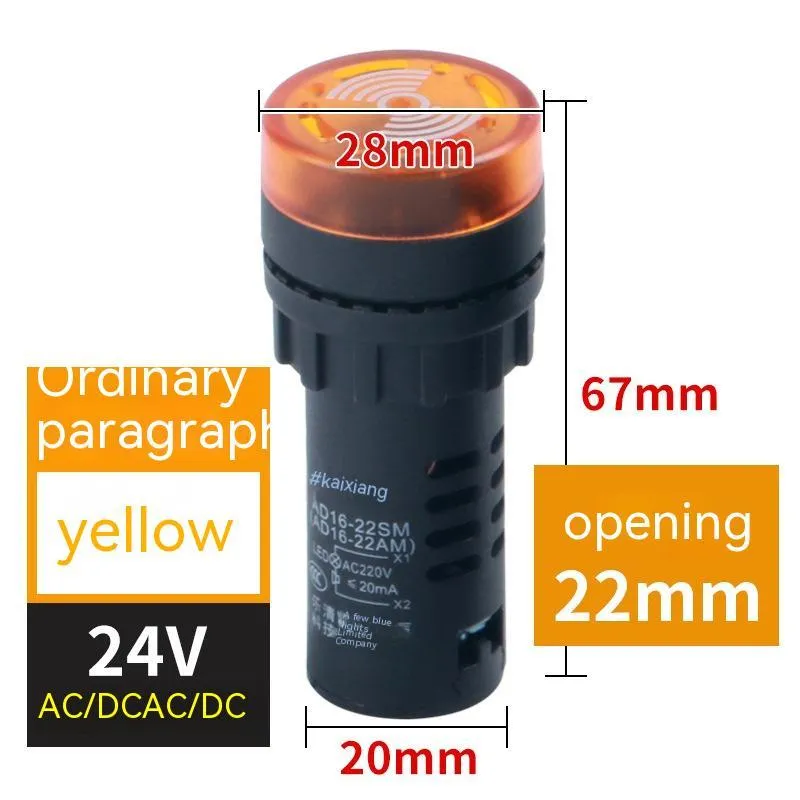

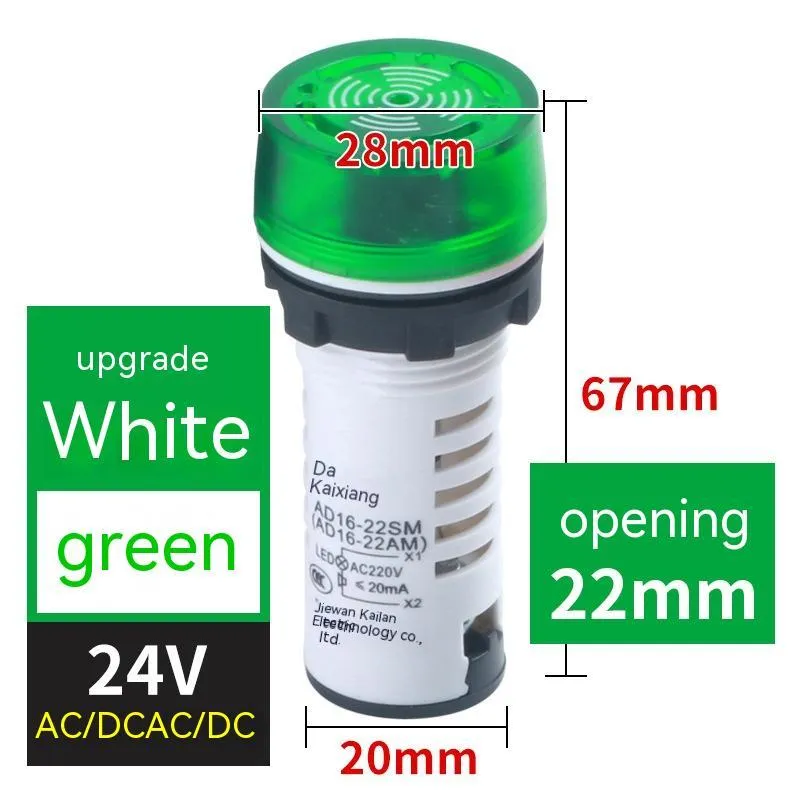

Designed for standardised industrial panel mounting, the buzzer requires a 22mm diameter circular cut-out for installation. This common size facilitates easy integration into new or existing control panels and cabinet doors. The product's compact form factor is reflected in its low unit weight of 0.03 kg, ensuring it does not place significant load on panel surfaces. This practical sizing allows it to be used in multi-indicator arrays without occupying excessive space.

Uses and Placement

This buzzer is specified for secondary distribution applications, a term referring to the final stage of power distribution within a facility before it reaches individual machines or loads. Its signalling capability makes it relevant across various industrial and commercial environments.

Event or Professional Use

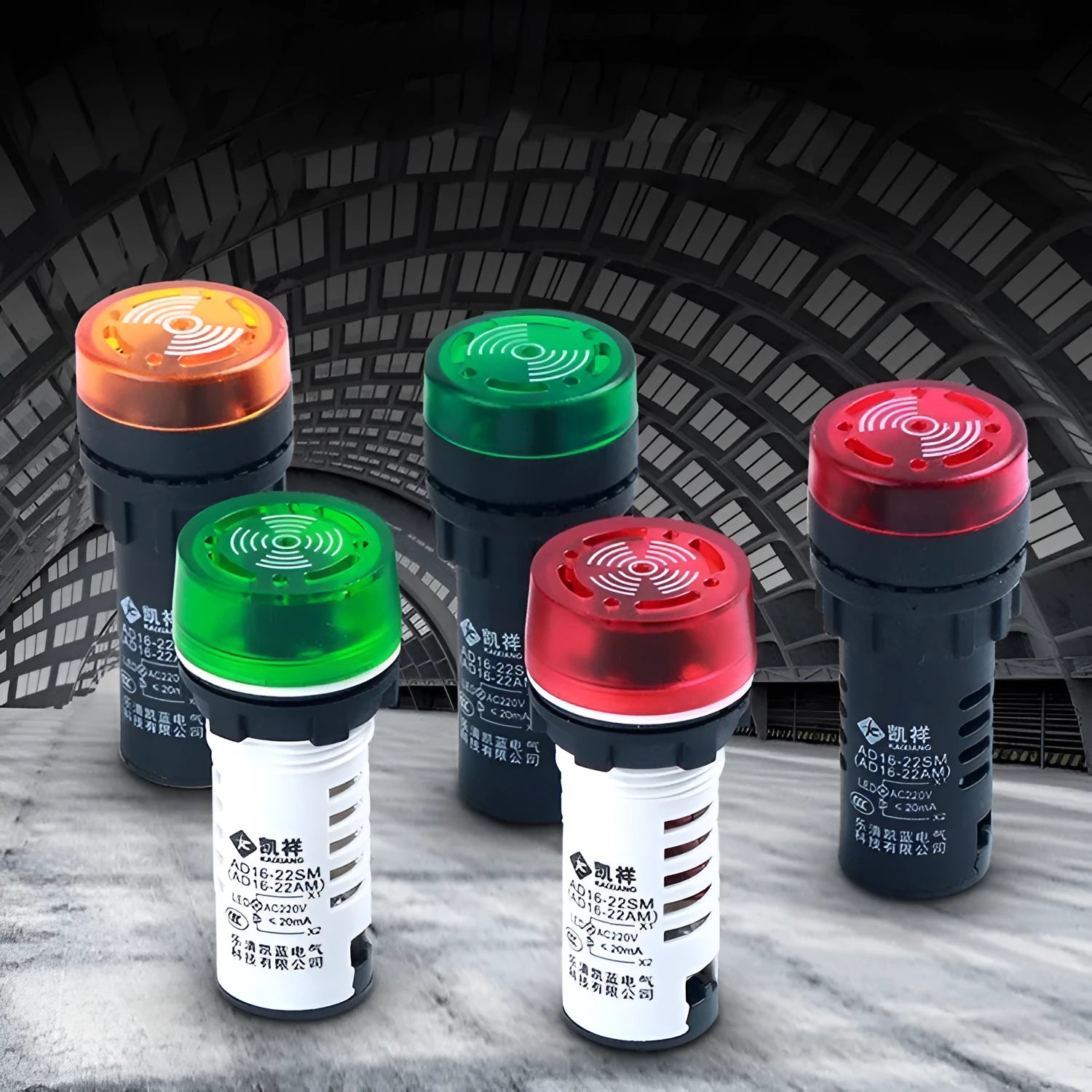

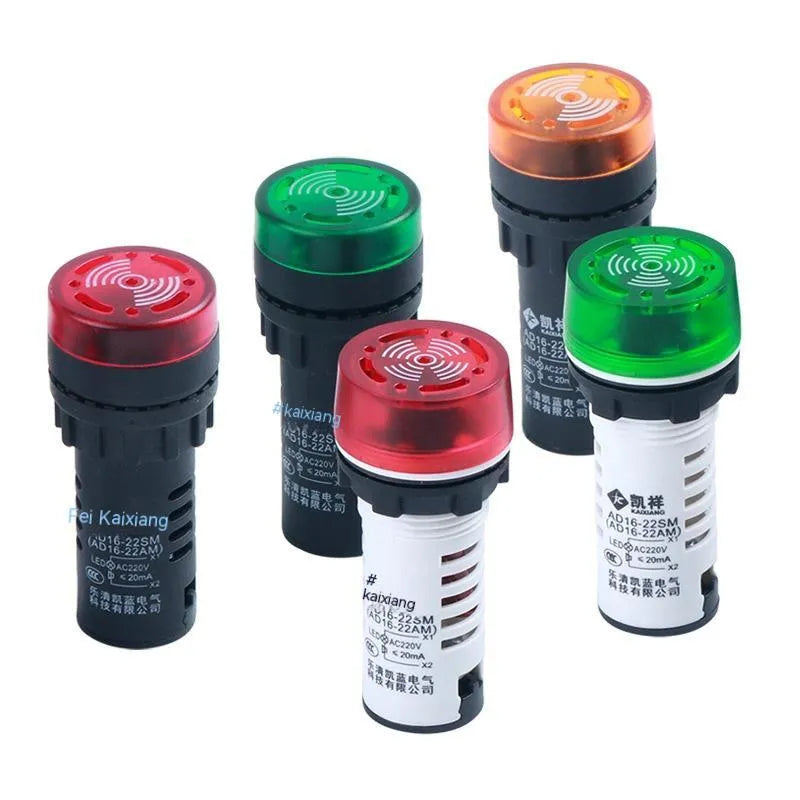

In professional settings, the AD16-22SM is deployed on machine tool panels, PLC-controlled automation systems, and generator set control panels. The choice of indicator colour—red, green, or yellow—allows for standardised status coding: red for faults or stops, green for normal operation or machine ready, and yellow for warnings or standby modes. The intermittent sound feature ensures the alert is noticeable over ambient machinery noise, making it a practical choice for factory floors, production lines, and utility rooms.

Everyday Home Use

While primarily an industrial component, this type of buzzer can be utilised in advanced DIY or workshop projects, such as custom-built power distribution units, solar power system monitors, or home security panel annunciators. The multiple voltage options, including common 12V DC and 220V AC, provide flexibility for hobbyist electronics and custom control panels where clear, dual-mode alerts are beneficial.

Benefits and Buying Value

The AD16-22SM offers tangible benefits derived from its specified features, focusing on integration flexibility, clear communication, and compliance.

Reuse and Low Maintenance

The product's solid-state LED light source contributes to a long operational life with minimal maintenance compared to filament-based bulbs. Its ability to operate across a range of standard voltages (AC/DC 12V, 24V, 220V) means a single unit type can serve as a spare part for multiple different systems within a facility, simplifying inventory management. The 3C certification provides assurance of a baseline level of safety and reliability for continued use.

Why Choose This Product

This buzzer provides a concrete solution for engineers and technicians needing a reliable, combined audio-visual alarm that meets common panel standards. Its key advantages are its multi-voltage compatibility, which avoids the need to stock different models for different supply rails, and the availability of three distinct colours for intuitive status indication. The inclusion of intermittent sound as the signal type is a practical feature for attracting attention. Supplied in a pack of ten, it offers value for projects requiring multiple units or for maintaining spares.
