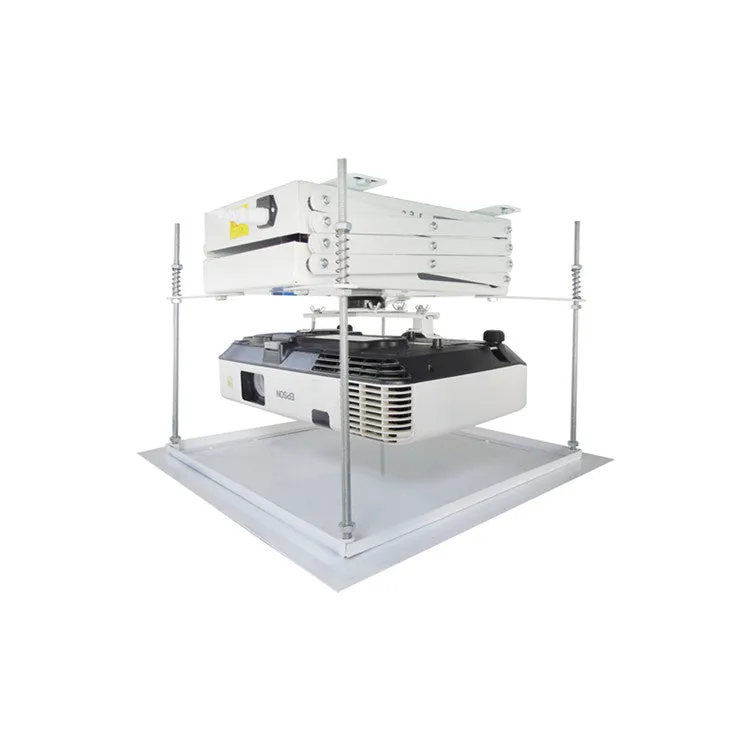

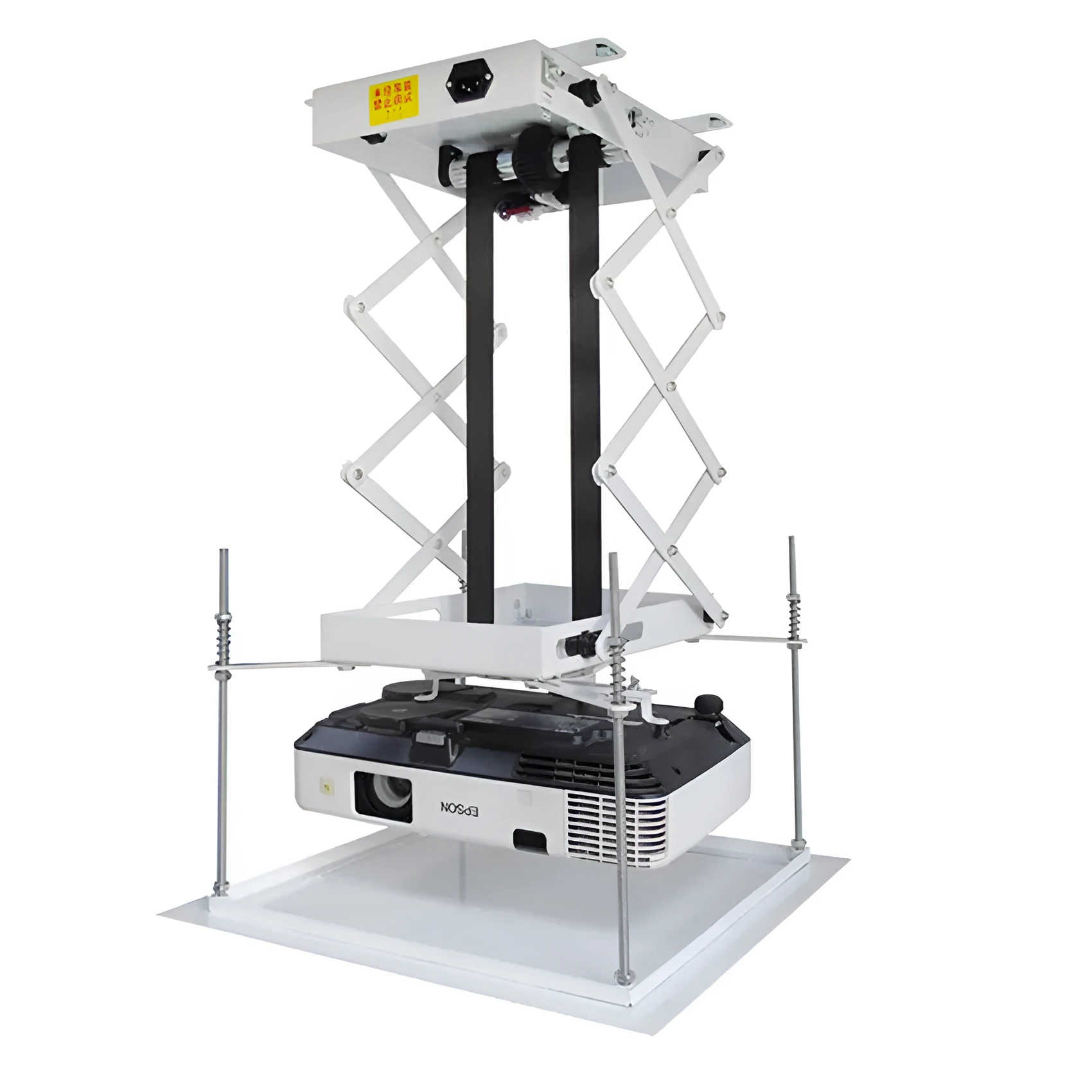

Electric Projector Lifting Hanger with 10cm Slim Chassis and Wireless Remote Control

Installing a projector traditionally meant committing to a fixed, protruding ceiling mount that dominated the room's aesthetic. This electric lifting hanger offers a modern alternative, featuring an ultra-thin chassis that retracts to just 10cm in height, presenting a near-flush finish when the projector is not in use. Controlled entirely by a wireless remote, it provides the flexibility to raise your projector from its stored position to the ideal height for viewing, with travel options of 0.8m, 1m, or 1.5m. Designed to handle projectors weighing up to 10kg, it uses a 48W synchronous motor running on standard 220V/50HZ power for dependable operation. This unit is built for those seeking a clean, adjustable installation for home cinema setups, conference rooms, or educational spaces where screen height needs to be optimised for different audiences or content.

Features and Construction

The projector hanger is engineered around core specifications that define its installation and performance. The chassis dimensions and motor details provide a clear framework for what the product offers and how it integrates into a space.

Material and Build

The hanger's construction is centred on a standard synchronous motor rated at 48W. This motor operates on 220V/50HZ electrical supply, which is common in residential and commercial settings. The mechanical system is designed for a specified travel limit; the source confirms a model with a 0.8m mechanical limit. The build is intended to support a maximum load of 10kg, indicating its suitability for a range of projector models within that weight class. The materials used for the chassis and lifting mechanism are chosen to accommodate this load, though specific alloys or plastics are not detailed in the provided information.

Size and Practical Fit

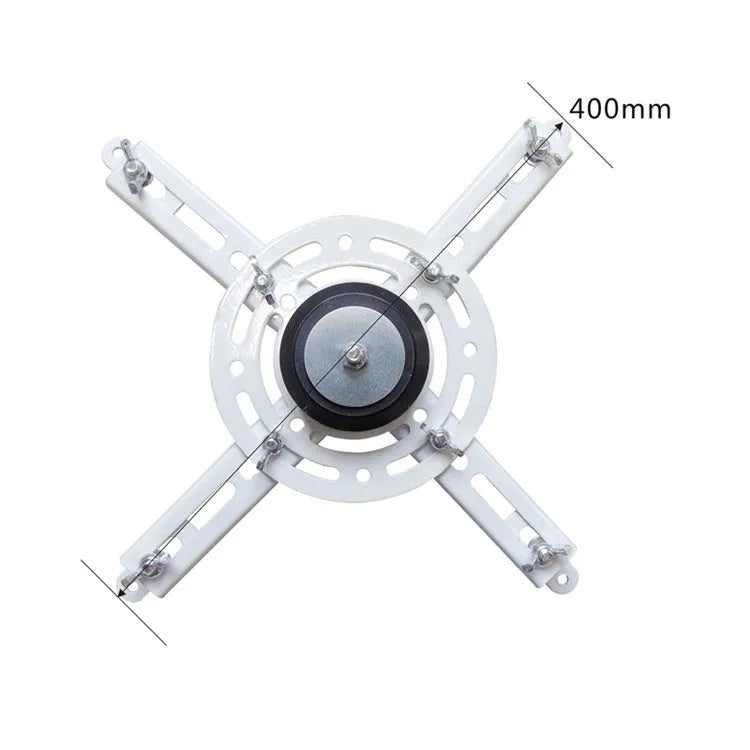

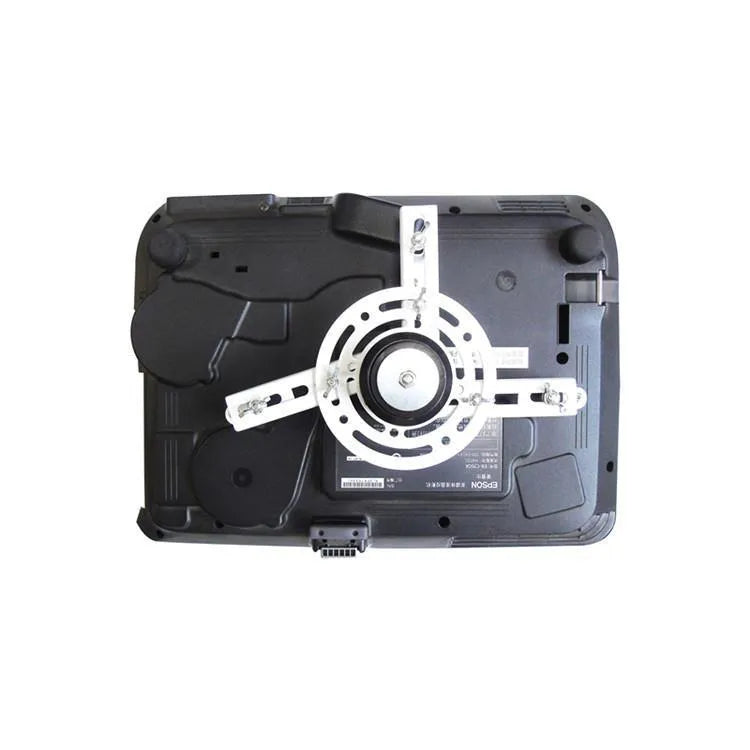

Physical dimensions are critical for installation. The chassis itself has a height of 10cm when retracted. The lifting claw, which holds the projector, extends 6cm. When fully deployed, the unit has an unfolded length of 18cm plus the height of the attached projector itself. The mounting base is defined by an outer bottom plate diameter of 48*48cm and an inner diameter of 42*42cm. For installation, a ceiling opening of 45*45cm is recommended to accommodate the plate securely. The product's gross weight is 10.5kg, which must be factored into ceiling support calculations.

Uses and Placement

This lifting mechanism is designed for scenarios where projector visibility and placement flexibility are priorities. Its ability to hide the projector away or position it precisely makes it suitable for both dedicated and multi-purpose rooms.

Event or Professional Use

In commercial environments like conference rooms, lecture halls, or event venues, the ability to retract the projector ensures a clean, professional appearance when the AV equipment is not needed. The wireless remote allows presenters or technicians to adjust the screen height from anywhere in the room, facilitating quick setup between different speakers or presentations. The 10kg load capacity covers many standard office and portable projectors, while the choice of travel distances (0.8m, 1m, 1.5m) allows for installation in rooms with varying ceiling heights to achieve the desired throw distance and image size.

Everyday Home Use

For home cinema enthusiasts, the primary benefit is aesthetic: the 10cm slim chassis significantly reduces visual clutter compared to a fixed mount. The projector can be lowered for movie nights and raised out of sight afterwards, protecting the lens and keeping living spaces tidy. The remote control adds convenience, eliminating the need for manual cranking or awkward ladder use. Home users should verify their projector's weight and dimensions against the 10kg load and 6cm claw height to ensure compatibility before purchase and installation.

Benefits and Buying Value

The value of this product lies in its specific functionality and the practical problems it addresses, rather than in unsupported claims about luxury or indefinite lifespan.

Reuse and Low Maintenance

The product is designed as a semi-permanent installation. Its value is realised through repeated use over time, as the electric lift avoids the wear and potential misalignment associated with manual adjustments. The synchronous motor and stated construction are geared for this recurring operation. Maintenance would logically involve ensuring the mechanical travel remains smooth and the wireless connection functional, though detailed long-term care instructions are not provided in the source material.

Why Choose This Product

This electric hanger is a relevant choice for users who have identified a need for a retractable, remotely operated projector mount. Its concrete advantages are its defined 10cm retracted height, the convenience of wireless control, and the clear load capacity of 10kg. When comparing options, a buyer can focus on these measurable specs—chassis slimness, remote operation, weight support, and available travel lengths—against their specific projector model and room layout. The product provides a solution where a fixed mount is insufficient and a fully manual lift is less desirable.
